Hanger Mount Vibration Isolator Attisstore 80-113 lb Capacity

Description

Product Overview

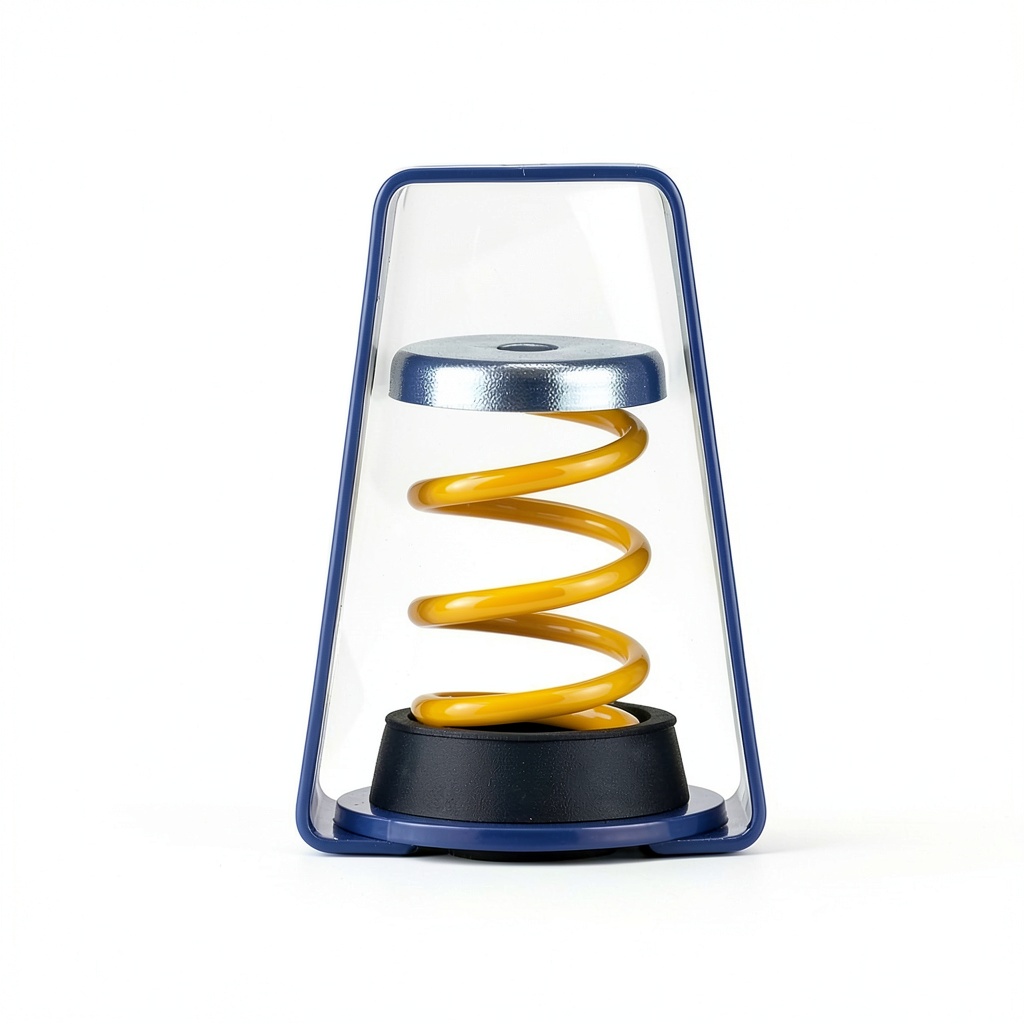

The Attisstore Hanger Mount Vibration Isolator is engineered to deliver superior vibration attenuation for a wide range of industrial applications. Constructed from a high‑grade yellow steel spring, the isolator provides consistent performance across its full deflection range of 0.75″ to 1.00″. Complementary LDS rubber cups are integrated beneath each spring, offering additional damping and protecting surrounding structures from noise transmission.

Designed with a compact footprint of 4‑1/4″ height by 2‑7/8″ width, the unit easily mounts onto standard hanger brackets without requiring extensive modifications. Its robust construction supports loads from 80 to 113 lb, making it suitable for medium‑size pumps, compressors, and other rotating equipment that demand reliable isolation.

Key engineering details include a maximum rod diameter of 3/8″ and a lower rod penetration of 3‑1/2″, ensuring secure attachment while maintaining optimal vibration isolation. The spring’s yellow coating not only resists corrosion but also provides visual identification for quick inventory management.

Performance testing demonstrates that the spring isolator reduces vibration transmission two to six times more effectively than traditional neoprene mounts, especially when operating at larger deflection amplitudes. This efficiency translates into longer equipment life, reduced maintenance costs, and quieter operating environments.

Usage

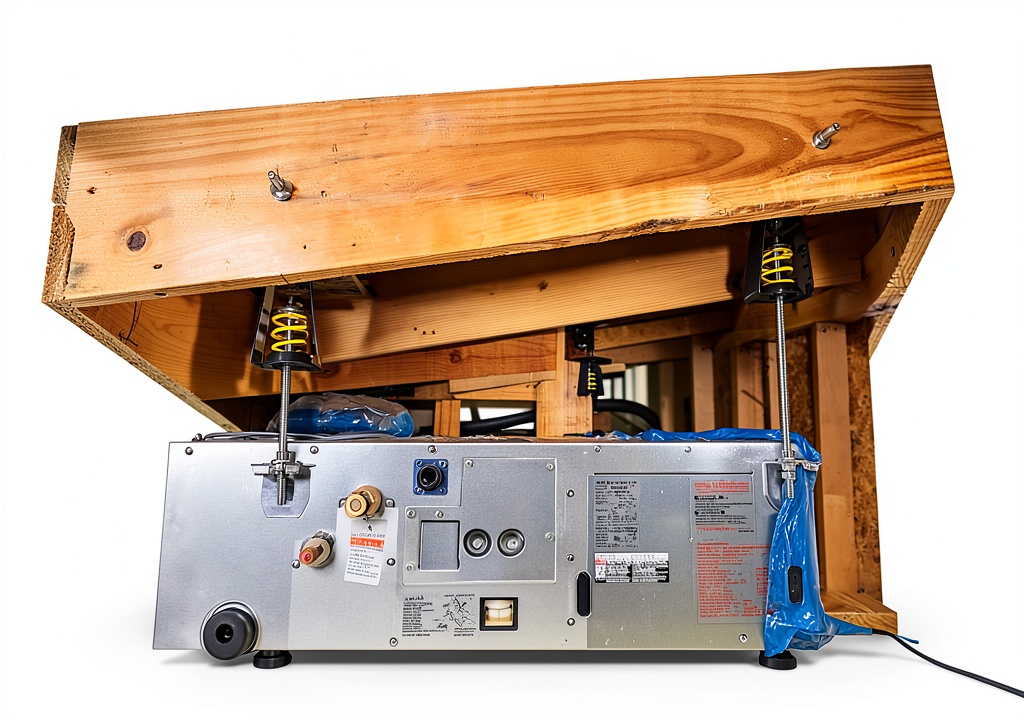

Ideal for industrial settings such as manufacturing plants, processing facilities, and utility installations, this isolator excels in environments where machinery generates continuous or intermittent vibrations. It is particularly effective for centrifugal pumps, reciprocating compressors, and motor‑driven gearboxes that require precise vibration control to maintain operational stability.

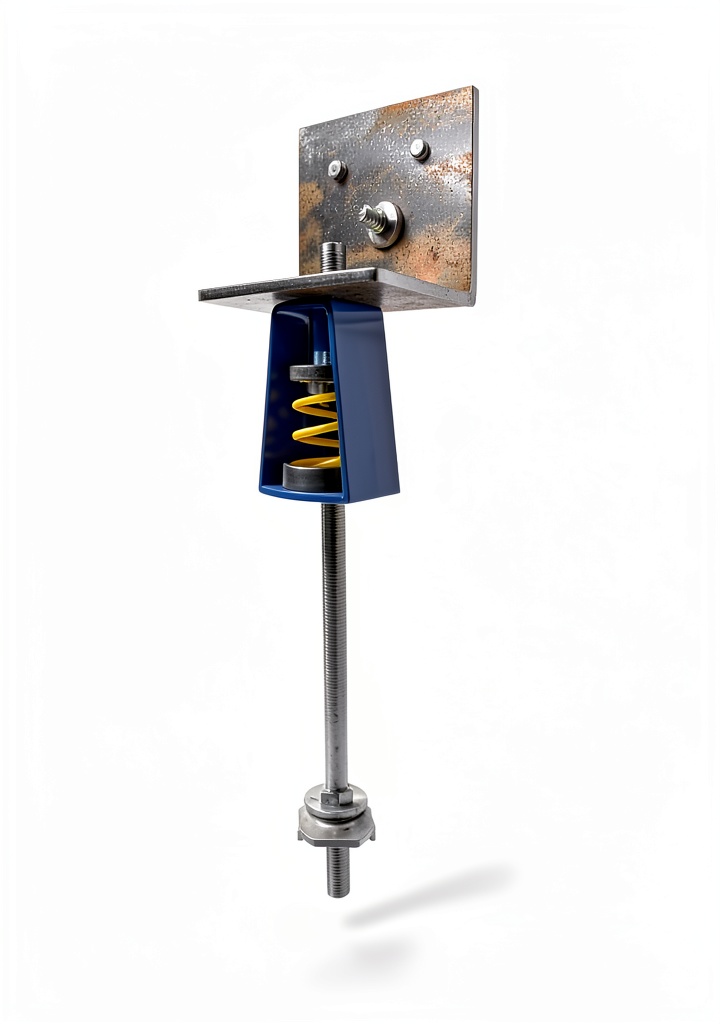

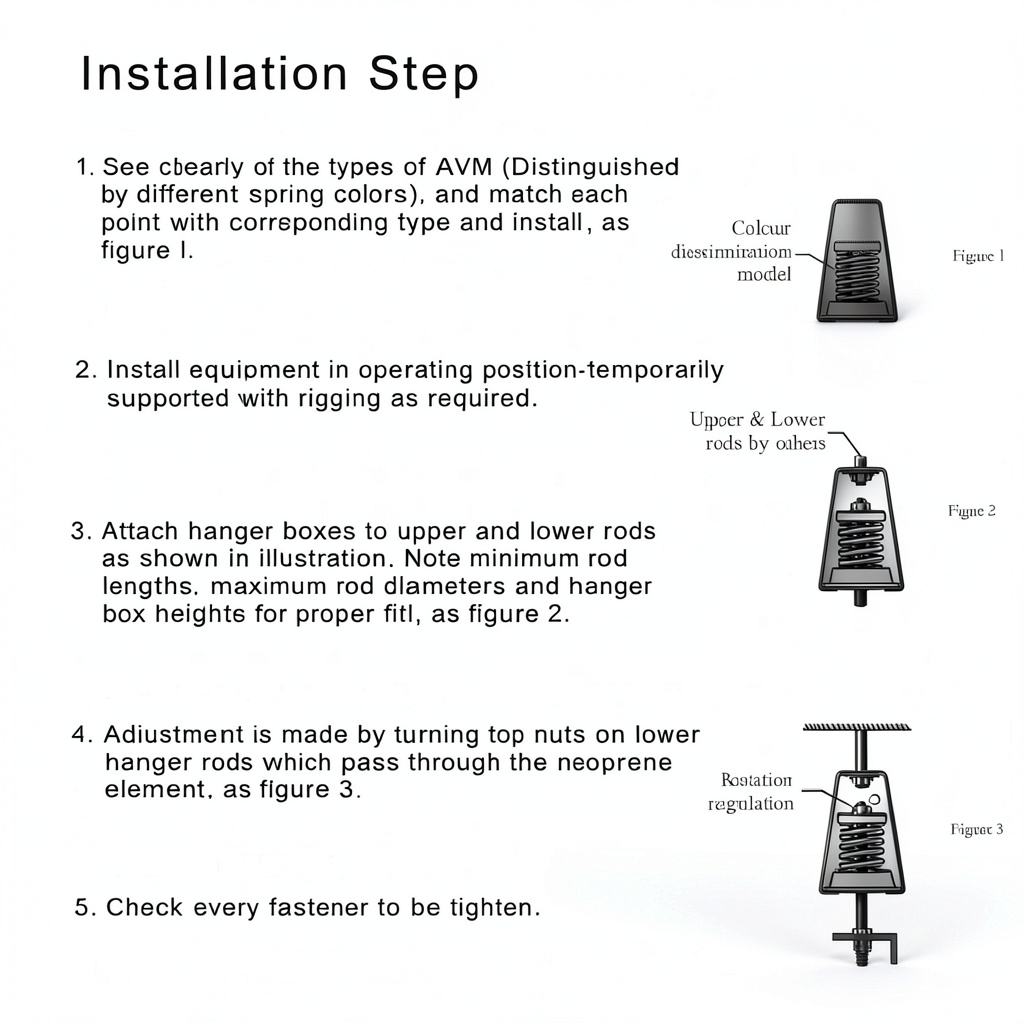

Installation is straightforward: the isolator’s steel rod penetrates the mounting bracket to a depth of 3‑1/2″, and the rubber bushing projects outward to absorb residual motion. This design minimizes the need for additional hardware, reducing installation time and labor costs.

When deployed in harsh conditions, the combination of steel spring resilience and LDS rubber cup durability ensures consistent performance despite temperature fluctuations, exposure to chemicals, or mechanical shocks. Users can rely on the isolator to maintain its damping characteristics over extended service periods.

For retrofit projects, the unit’s dimensions allow it to replace existing neoprene mounts without altering the overall system layout, providing an immediate upgrade in vibration control capabilities.

Why Choose Us

Attisstore stands behind every product with a commitment to quality and customer satisfaction. Each vibration isolator undergoes rigorous testing to verify load capacity, deflection performance, and durability before leaving the factory. Our manufacturing process adheres to ISO‑9001 standards, ensuring consistent product reliability across all batches.

Beyond the technical specifications, we offer comprehensive after‑sales support, including installation guidance, troubleshooting assistance, and a responsive warranty service. Our technical team is available to help customers select the appropriate capacity range and provide recommendations for optimal mounting configurations.

Choosing Attisstore means investing in a solution that not only meets but exceeds industry expectations for vibration damping. The combination of premium materials, precise engineering, and dedicated support delivers tangible benefits such as reduced equipment wear, lower energy consumption, and improved workplace safety.

Our customers benefit from a proven track record of performance, reflected in a 4.8‑star rating from over 18 verified reviews. This feedback underscores the reliability and effectiveness of our isolators in real‑world applications.

Key Features

• High‑strength yellow steel spring delivers up to six times better vibration reduction than neoprene.
• LDS rubber cups under each spring absorb residual noise, protecting surrounding equipment.
• Compact size fits standard hanger brackets, simplifying installation and retrofits.
• Supports loads from 80 to 113 lb, covering a broad range of industrial machinery.
• Attisstore provides dedicated customer support and warranty service for peace of mind.

FAQ

What types of equipment can benefit from this isolator?

The isolator is suitable for pumps, compressors, motor‑driven gearboxes, and other rotating machinery that generate vibration. Its load capacity and deflection range make it ideal for medium‑size industrial equipment.

How does the LDS rubber cup improve performance?

The LDS rubber cup acts as a secondary damping element, absorbing high‑frequency vibrations that the steel spring alone may not fully mitigate. This dual‑stage design reduces noise transmission and protects adjacent structures.

Can the isolator be used in harsh chemical environments?

Yes. The steel spring’s yellow coating provides corrosion resistance, and the rubber components are formulated to withstand exposure to many industrial chemicals. However, for extreme chemical exposure, additional protective measures may be advisable.

Is installation possible without specialized tools?

Installation requires basic hand tools such as wrenches and screwdrivers. The design allows the spring rod to be inserted into standard brackets, and the rubber bushing secures without the need for custom machining.

What warranty does Attisstore offer?

Attisstore provides a one‑year limited warranty covering manufacturing defects. Our support team assists with any issues that arise, ensuring the isolator performs as expected throughout its service life.
